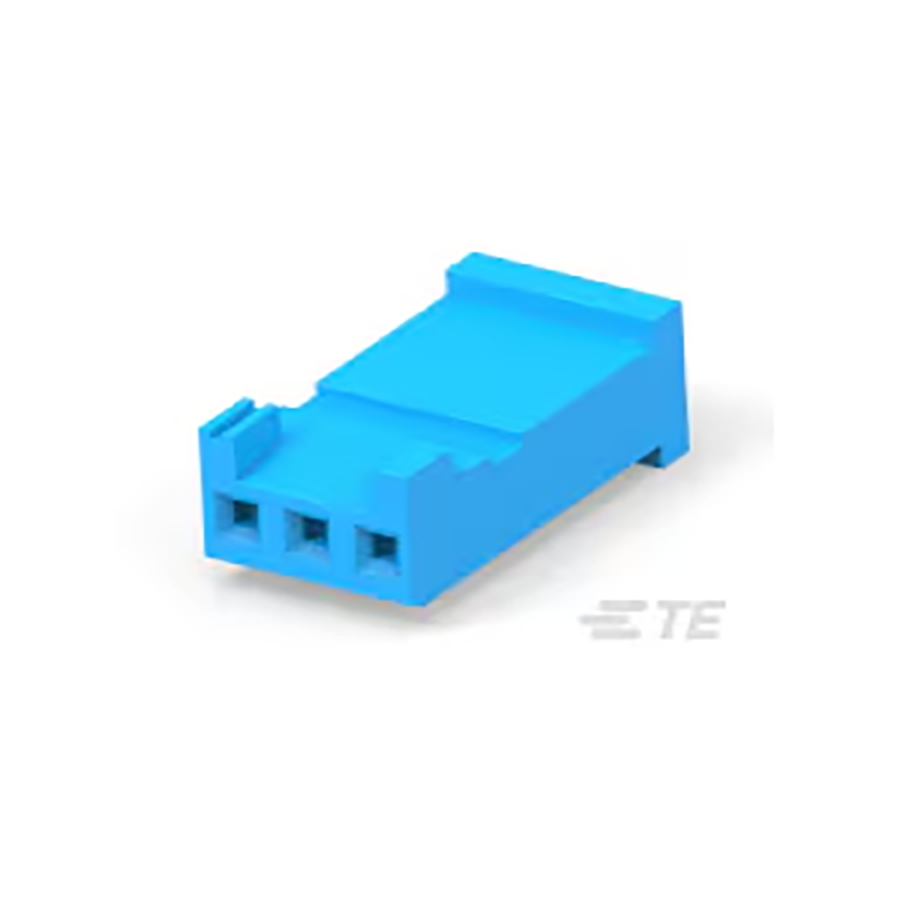

281838-3
Manufacturer:
TE Connectivity
Mfr.Part #:
281838-3
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:3 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 7.62 mm |
| Width | 5.08 mm |
| Termination | IDC |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Height | 15.0114 mm |
| Packaging | Bulk |
| Depth | 15 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Blue |
| Gender | Receptacle |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Receptacle, Socket |
| Wire/Cable Gauge | 24 AWG |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | PBT |
| Contact Current Rating | 3 A |
| Housing Color | Blue |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Mating Retention | Without |
Stock: 90
Distributors
pcbx
pcbxUnit Price$0.44045
Ext.Price$0.44045
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.44045 | $0.44045 |
| 10 | $0.35414 | $3.54140 |
| 25 | $0.32501 | $8.12525 |
| 50 | $0.29827 | $14.91350 |
| 100 | $0.27373 | $27.37300 |
| 300 | $0.25223 | $75.66900 |
| 500 | $0.23241 | $116.20500 |
| 1000 | $0.22019 | $220.19000 |
